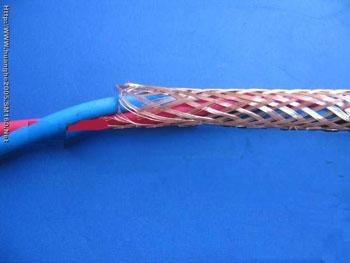

RVVP 型铜芯聚氯乙烯绝缘铜丝屏蔽聚氯乙烯护套线技术参数（ JB8734-1998 ）
|
额定电压:300/500V |
导体结构： 2~60芯 |
平均外径 |
20C时导体电阻最大值Q/KM |
|
芯数 * 标称截面（ mm2) |
导体中单线最大直径 mm |
绝缘厚度规定值 mm |
屏蔽层铜线最大直径 MM |
护套厚度规定值 mm |
RVVP
下限 mm上限 mm |
铜芯 |
镀锡铜芯 |
70C 时最小绝缘电阻值（ MQ.KM ） |
|
1*0.08 |
0.13 |
0.4 |
0.1 |
0.4 |
2.4-2.9 |
247 |
254 |
0.018 |
|
1*0.12 |
0.16 |
0.4 |
0.1 |
0.4 |
2.4---3.0 |
158 |
163 |
0.016 |
|
1*0.20 |
0.16 |
0.4 |
0.1 |
0.4 |
2.6--3.2 |
92.3 |
95 |
0.013 |
|
1*0.30 |
0.16 |
0.5 |
0.1 |
0.4 |
2.9--3.7 |
69.2 |
71.2 |
0.014 |
|
1*0.40 |
0.16 |
0.5 |
0.1 |
0.4 |
3.0--3.7 |
48.2 |
49.6 |
0.013 |
|
1*0.50 |
0.21 |
0.5 |
0.1 |
0.4 |
3.1--3.8 |
39 |
40.1 |
0.012 |
|
1*0.75 |
0.21 |
0.5 |
0.1 |
0.4 |
3.4--4.1 |
26 |
26.7 |
0.01 |
|
1*1.0 |
0.21 |
0.6 |
0.1 |
0.6 |
4.1--4.9 |
19.5 |
20 |
0.01 |
|
1*1.5 |
0.26 |
0.6 |
0.1 |
0.6 |
4.3--5.2 |
13.3 |
13.7 |
0.009 |
|
1*2.5 |
0.26 |
0.7 |
0.15 |
0.6 |
4.9--6.0 |
7.98 |
8.21 |
0.008 |
|
2*0.08 |
0.13 |
0.4 |
0.1 |
0.4 |
3.2 |
247 |
264 |
0.018 |
|
2*0.12 |
0.16 |
0.4 |
0.1 |
0.6 |
3.7 |
156 |
163 |
0.016 |
|
2*0.20 |
0.16 |
0.4 |
0.1 |
0.6 |
4.1 |
92.3 |
95 |
0.013 |
|
2*0.30 |
0.16 |
0.5 |
0.15 |
0.6 |
4.8 |
69.2 |
71.2 |
0.014 |
|
2*0.40 |
0.16 |
0.5 |
0.15 |
0.6 |
5.1 |
48.2 |
49.6 |
0.013 |
|
2*0.50 |
0.21 |
0.5 |
0.15 |
0.6 |
5.3 |
39 |
40.1 |
0.012 |
|
2*0.75 |
0.21 |
0.5 |
0.15 |
0.6 |
5.8 |
26 |
26.7 |
0.01 |
|
2*1.0 |
0.21 |
0.6 |
0.15 |
0.6 |
6.4 |
19.5 |
20 |
0.01 |
|
2*1.50 |
0.26 |
0.6 |
0.15 |
0.8 |
7.3 |
13.3 |
13.7 |
0.009 |
|
3*0.12 |
0.16 |
0.4 |
0.1 |
0.6 |
3.9 |
158 |
163 |
0.016 |
|
3*0.20 |
0.16 |
0.4 |
0.15 |
0.6 |
4.5 |
92.3 |
95 |
0.013 |
|
3*0.30 |
0.16 |
0.5 |
0.15 |
0.6 |
5.1 |
69.2 |
71.2 |
0.014 |
|
3*0.40 |
0.16 |
0.5 |
0.15 |
0.6 |
5.4 |
48.2 |
49.6 |
0.013 |
|
3*0.50 |
0.21 |
0.5 |
0.15 |
0.6 |
5.6 |
39 |
40.1 |
0.012 |
|
3*0.75 |
0.21 |
0.5 |
0.15 |
0.6 |
6.1 |
26 |
26.7 |
0.01 |
|
3*1.0 |
0.21 |
0.6 |
0.15 |
0.6 |
7.2 |
19.5 |
20 |
0.01 |
|
3*1.50 |
0.26 |
0.6 |
0.2 |
0.6 |
8 |
13.3 |
13.7 |
0.009 |
|
|
 |
|
|
|
|
